ADT 927 Hydraulic Pressure Test Pump -12.5 psi to 10,000 psi

The ADT 927 Hydraulic Pressure Test Pump is a hand operated pressure pump designed to generate pressure from -12.5psi (-0.85bar) to 10,000 psi (700bar). With the patented screw press technology, high pressures can be easily generated, increased and decreased smoothly. Without non-returning valve that is usually used on troublesome hand pumps, the ADT 927 requires minimal maintenance. Two hand-tight connectors installed on the pump allow easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches.
The ADT927 is an ideal comparison test pump for calibrating pressure measuring instruments such as test gauges, indicators or transducers in the field or laboratory.

Features

• Portable
Only 7.1 lb

• High resolution
10 Pa (0.1 mbar)
High-quality screw press for fine pressure adjustment

• Great Stability
A specially designed shut-off valve makes the pressure stability as high as possible during calibration

• Durable and Minimal Maintenance
Built-in gas-liquid isolator protects the pump from moisture and dirt
The residual liquid in the pump introduced from devices under test will be pushed out and collected during pressure release

• Easy-to-use

• Finger-tight Connectors
Using your fingers to connect and disconnect gauges quickly and easily without the need for PTFE tape or wrenches

Applicazioni

The ADT 927 is designed to generate pressure from 85% vacuum to 10,000 psi (700 bar) for the application requiring accurate pressure testing and calibration. It can be used in calibrating pressure gauges, transmitters, or other pressure measuring instruments.

Specification
·         Generated Pressure Range: -12,5 psi (0.85 bar) vacuum to 10000 psi (700 bar) positive pressure

·         Pressure Resolution: 10 Pa (0.1 mbar)

·         Material:
Ram/adapters:  SST;
Body: SST/aluminum;
Seals: Buna-N.

·         Connection:
Finger-tight connectors for both test gauge and reference gauge.
Test Gauge connection: 1/4" NPT female.
Reference Gauge Connection: 1/4" NPT female.

·         Dimensions:
Height: 5,31'' (135 mm);
Base: 11.42'' (290 mm) x 7,80'' (198 mm).

·         Weight: 16,4 lb (7.4 kg).

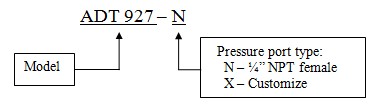

Ordering Information
Model number:


Optional Accessories:
Model number
Description
9905
Carrying case for ADT927 pump and one gauge
ADT 103
Adapters & Fittings
Download Data Sheet Send Mail for information See Calibrator Pumps
