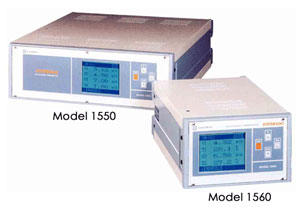

Model
|
1550
|
1560
|
|
Display
|
LCD
(with backlight) Simultaneously displays on a
module basis
|
|
MAN:
Select modules by operating the UP/DOWN
switches
|
|
AUTO:
Automatically select s modules every 2 seconds
to display data
|
|
Function
|
Burst
Mode: Transfers data of all
channels at high speed
Channel Mode: Transfers data of the
specific channel only
|
|
Data Selection: Outputs instantaneous values
every specified sampling time, and outputs
the average
|
|
Interface
|
Data transfer: RS232C
(standard), extended RS232C (optional) and
GP-IB (optional)
|
|
Baud Rate: 300, 600, 1200, 2400,
4800, 9600, 19200bps(selectable)
|
|
Printer output: Centronics (the
system prints data only of the module display,
every 2 seconds.)
|
|
Dimensions
|
16.9” x 19.6” x 5.5” (430 x 500
x 140 mm)
|
8.9” x 12.8” x 5.5” (226 x 325 x
140mm)
|
|
Weight
|
Approx. 22lbs (Approx. 10kg)
|
Approx. 11lbs (Approx. 5kg)
|
